pointSEM ZEISS LEO 1530 in Detail
High-resolution images for precise analyses.

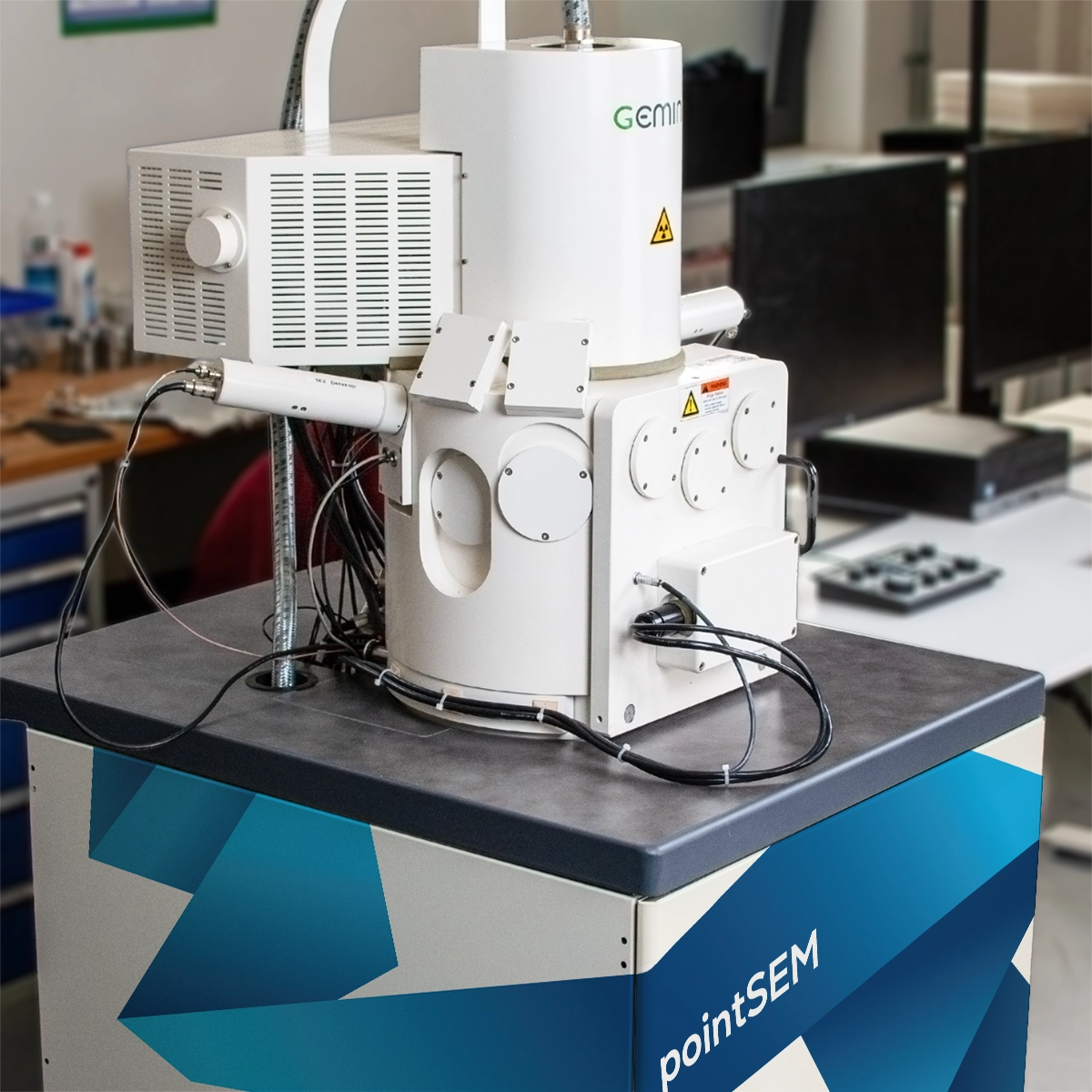

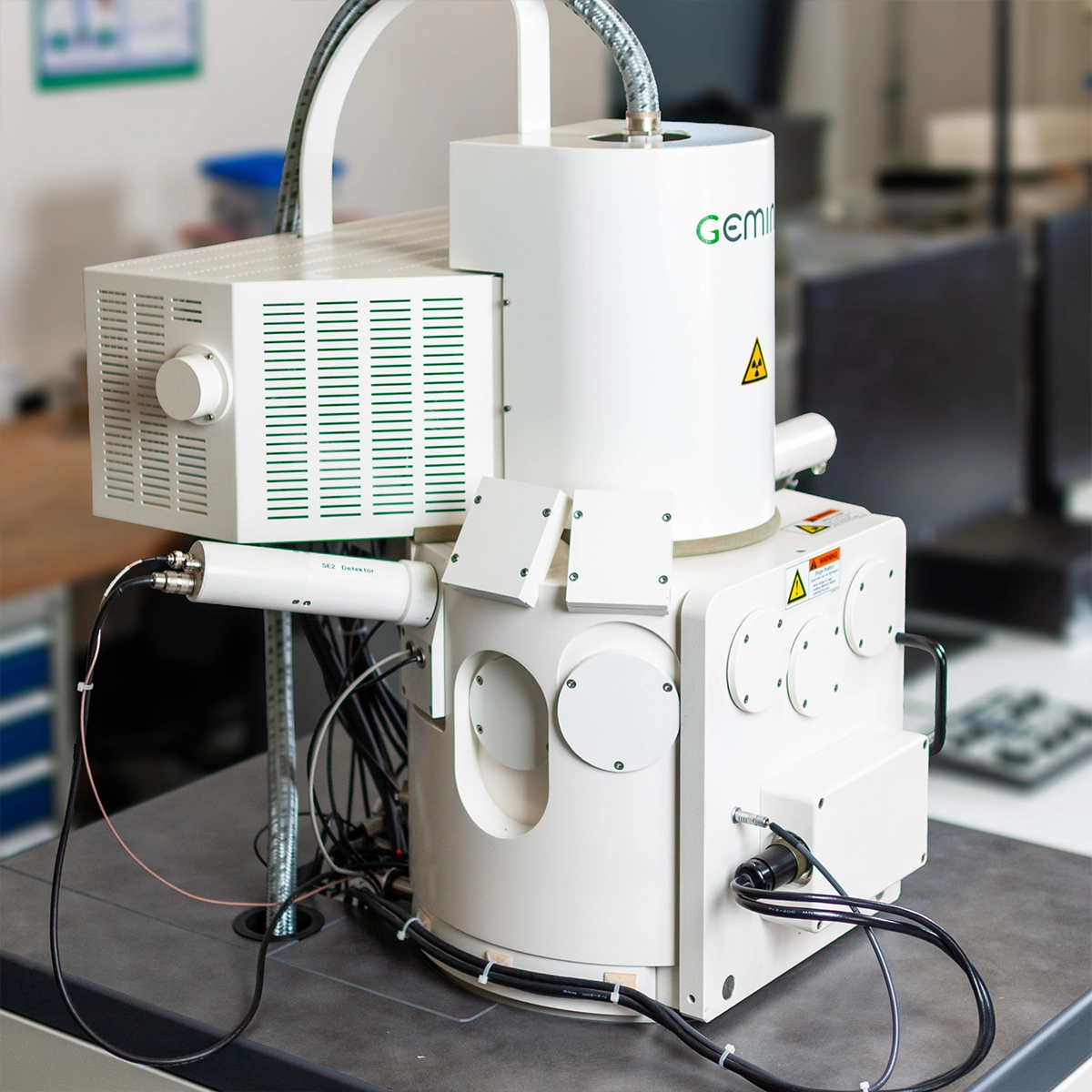

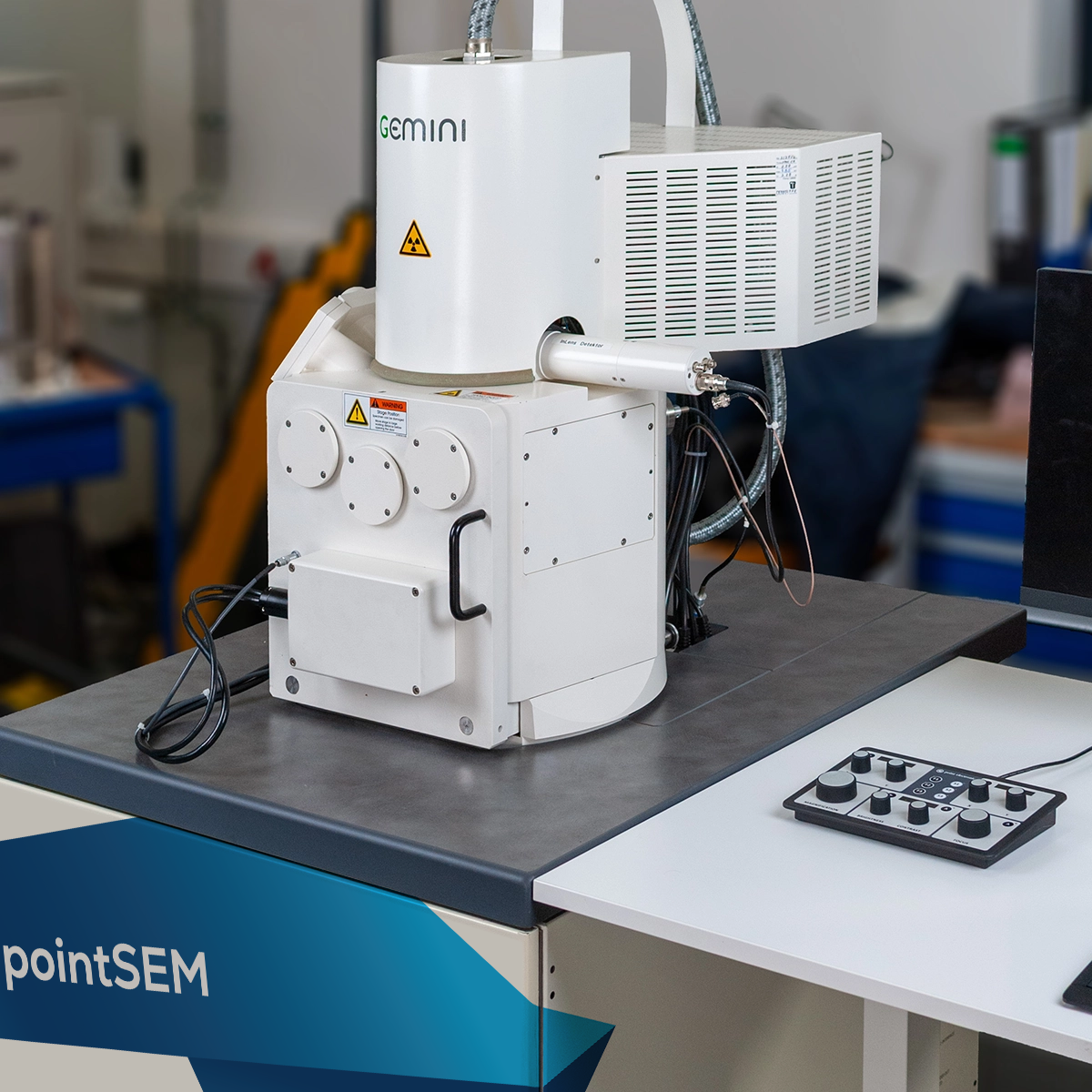

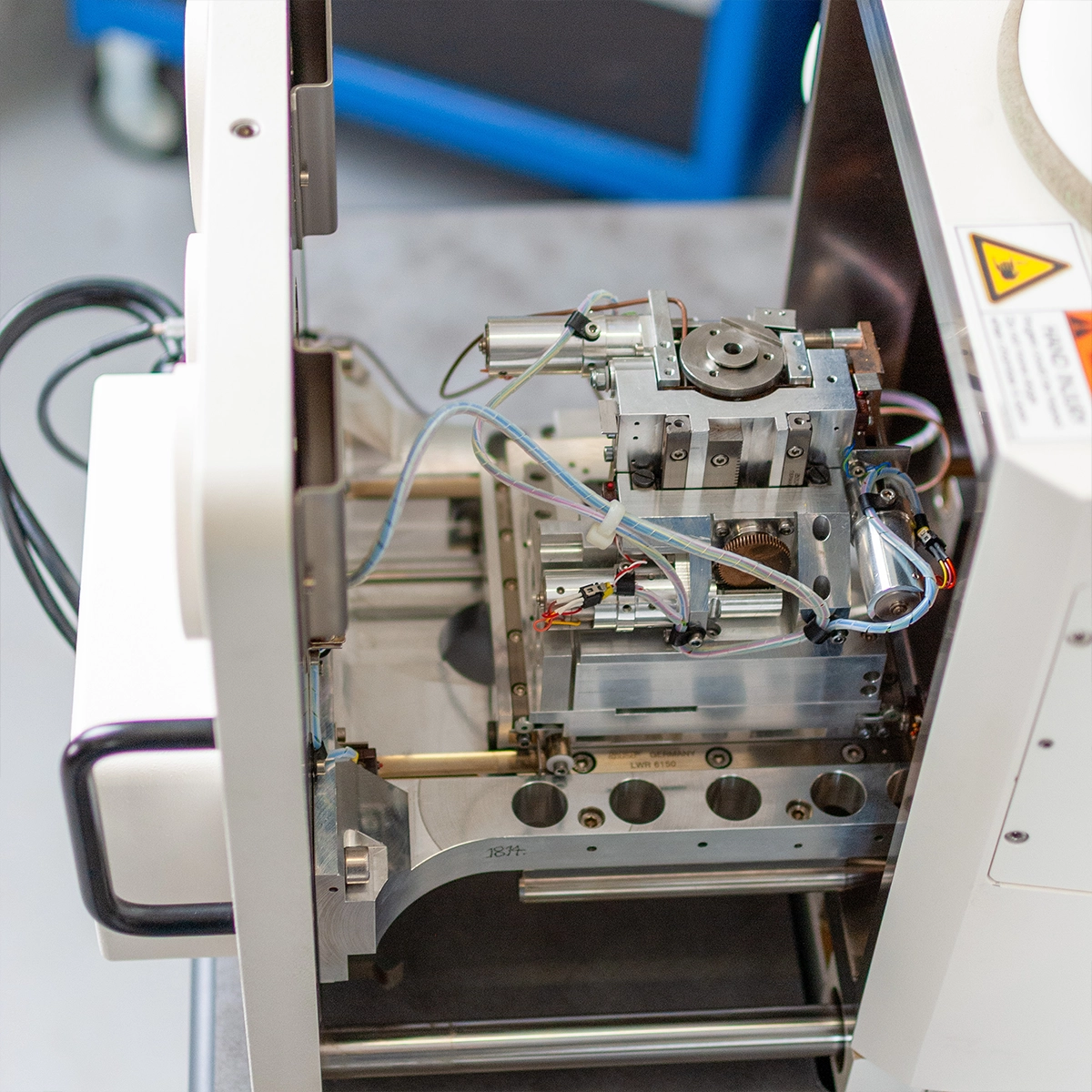

This pointSEM is based on a used LEO 1530 and is a Schottky field emission scanning electron microscope (FEG-SEM). The legendary Zeiss GEMINI® column has been enhanced with state-of-the-art, completely new electronics and powerful control software - made by point electronic.
The LEO 1530 features an efficient In-Lens detector and delivers excellent performance in the low kV range, enabling high sample throughput with superior image quality.

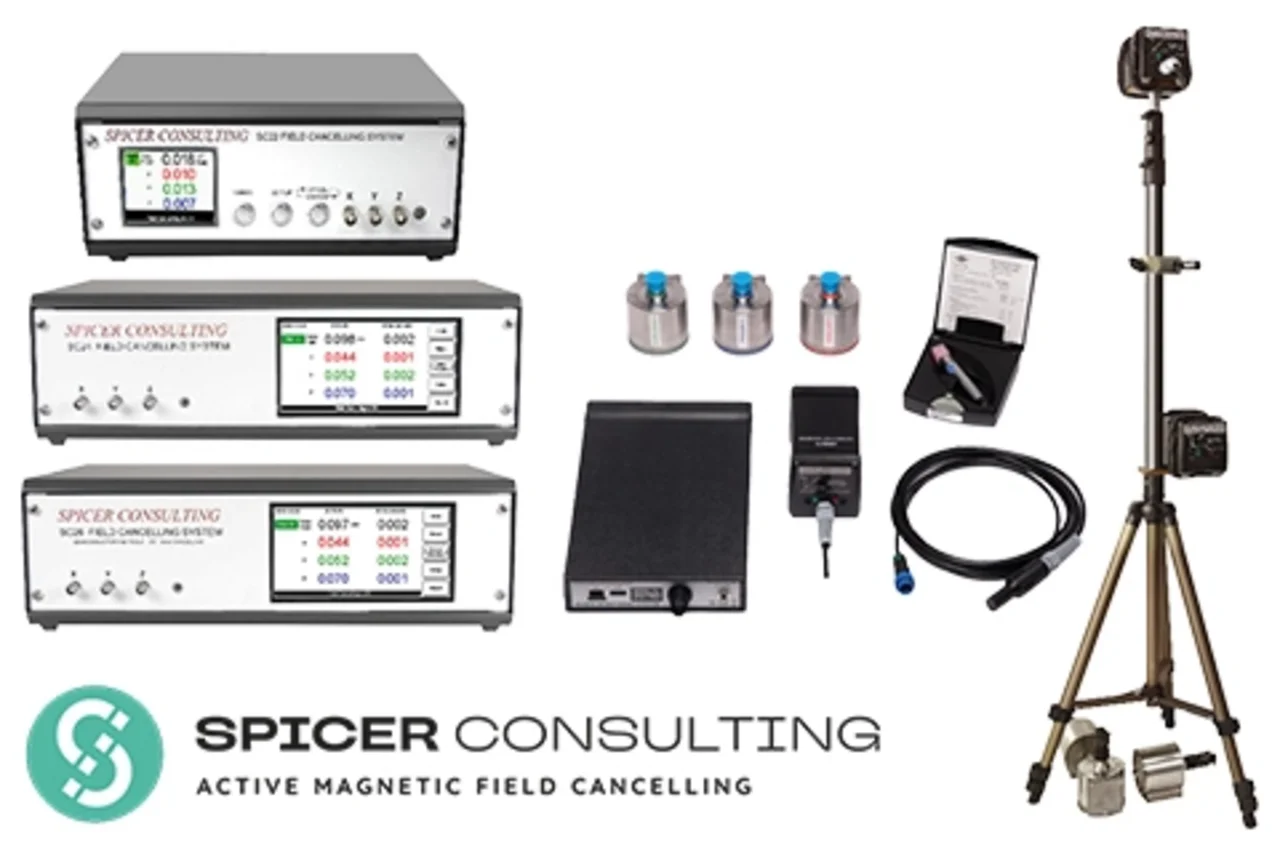

Magnetic Field Compensation by Spicer Consulting
- Minimizes external electromagnetic interference on image quality and measurement accuracy
- Enables higher resolution, more stable images, and reproducible analysis results

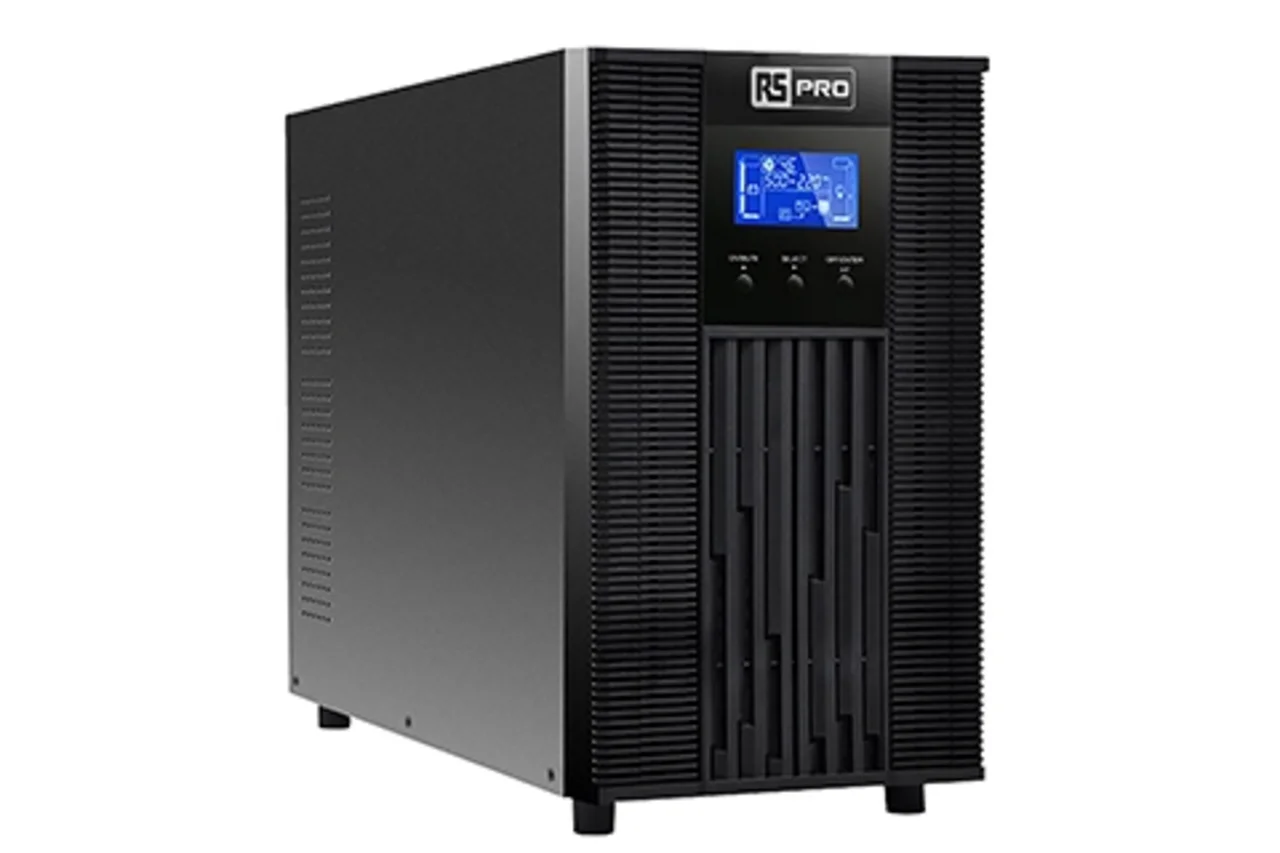

Independent Power Supply and Surge Protection
- Ensures operation during power outages
- Protection against grid fluctuations and surges
- Reduces downtime of your pointSEM

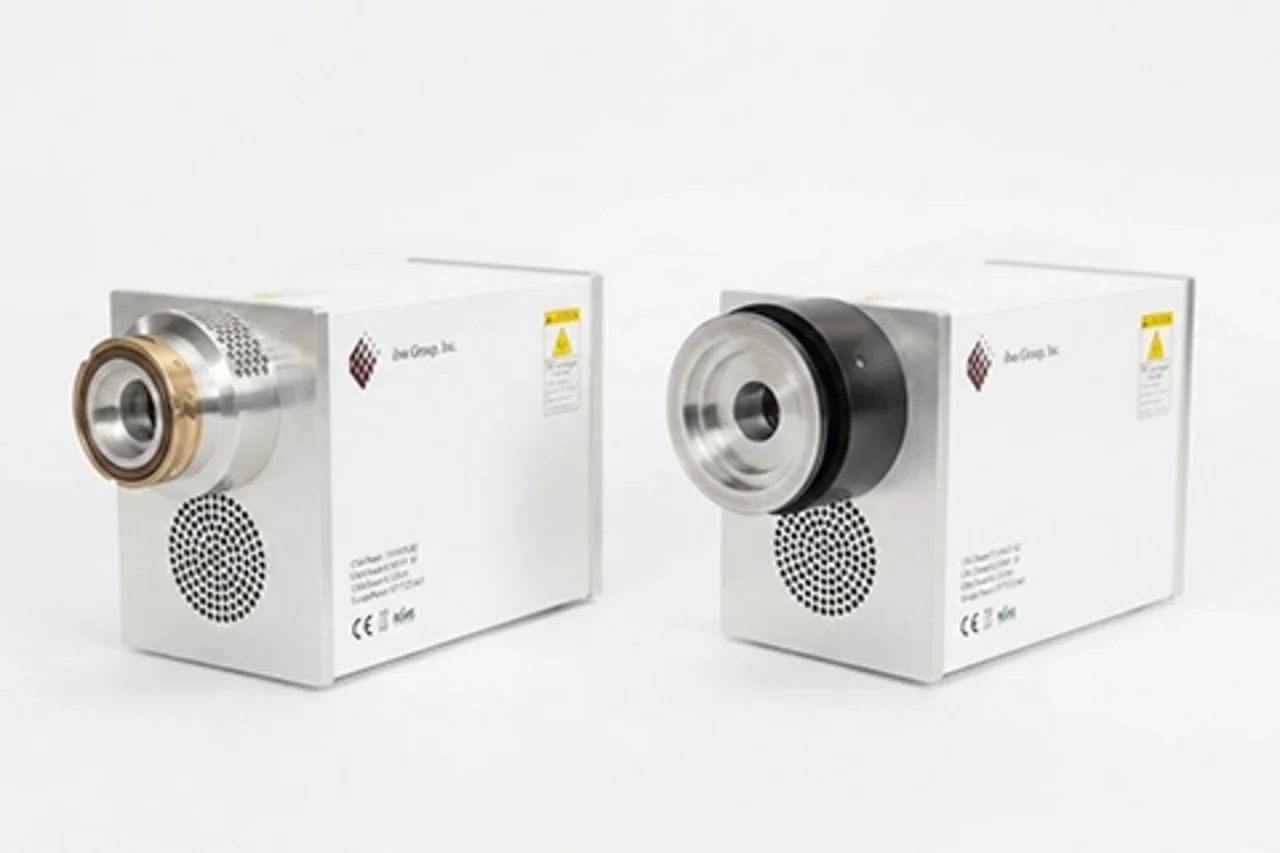

Plasma Cleaner
- Reduces contaminations
- Improves image quality
- Fewer artifacts
- More stable and reliable measurement results, especially at high resolutions

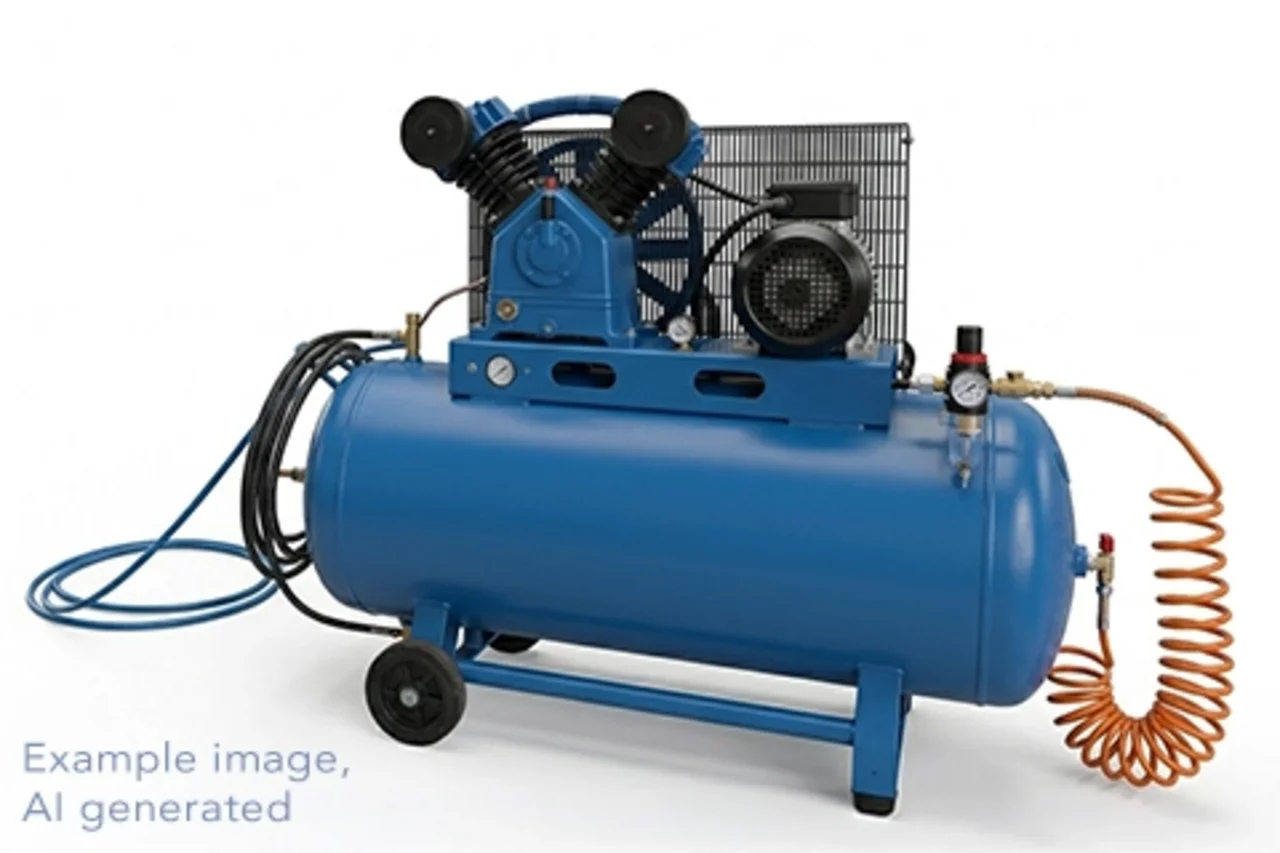

Compressors
- Supplies auxiliary units and infrastructure systems
- Supports stable operation
- Prevents operational disruptions
- Increases system availability
Recirculating Cooler
- Constant operating temperature of important system components of your pointSEM
- Reduces temperature-induced fluctuations

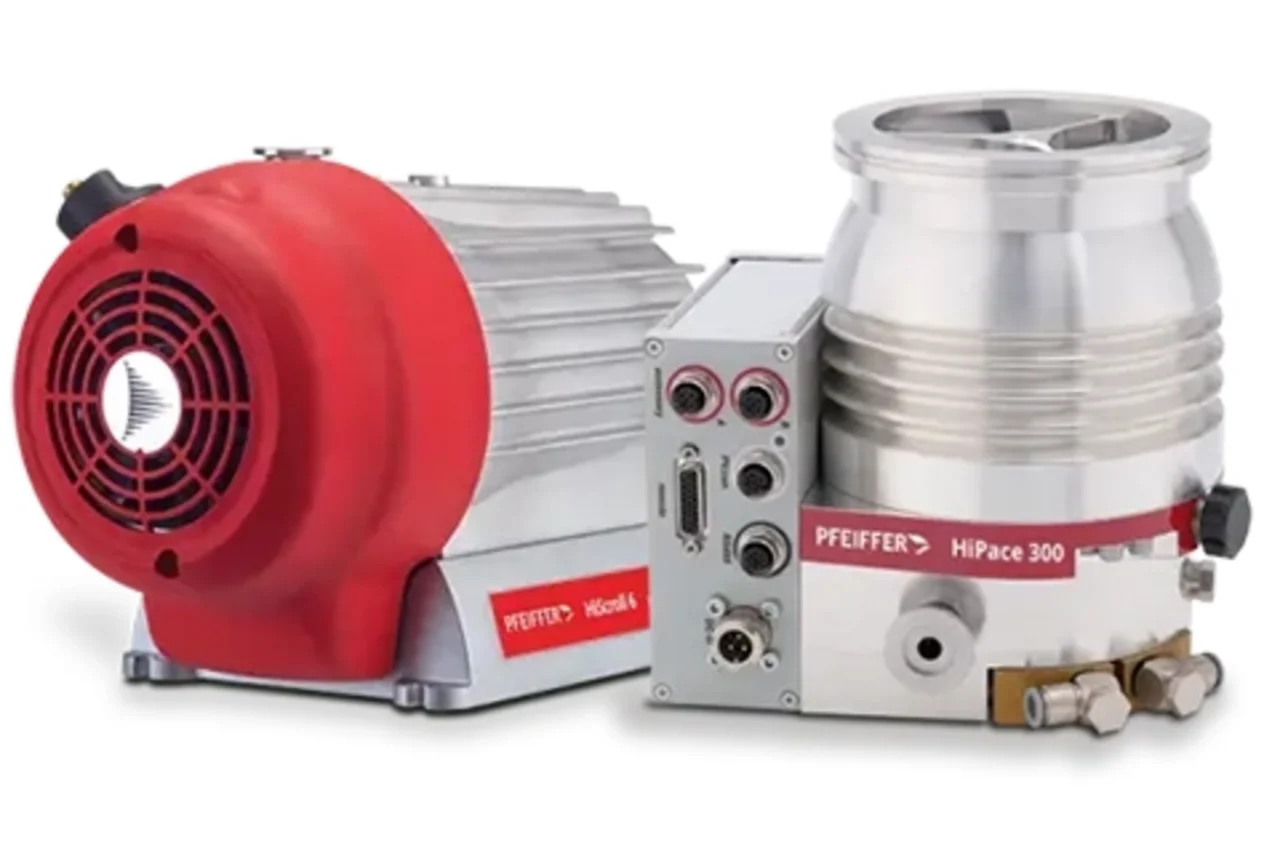

Vacuum Pumps
We offer suitable vacuum pumps for your pointSEM:
- Foreline pumps
- Turbo pumps
Soundproof Boxes
- Reduces noise pollution caused by pumps and compressors
- Minimizes disturbing vibrations for your pointSEM

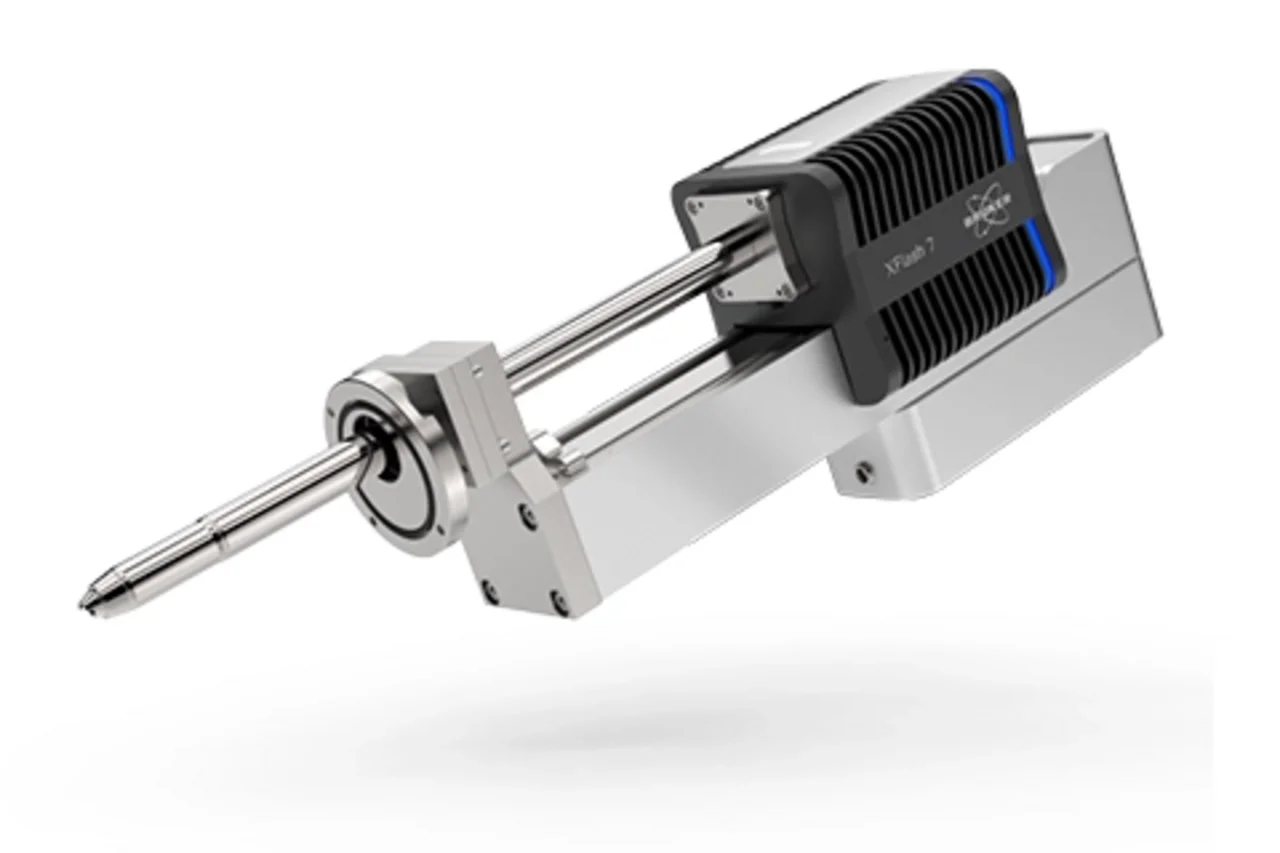

EDX by Bruker
- Qualitative and quantitative material analyses - from Boron (5) to Californium (98)
- Composition evaluations, line scanning, spectral element mapping

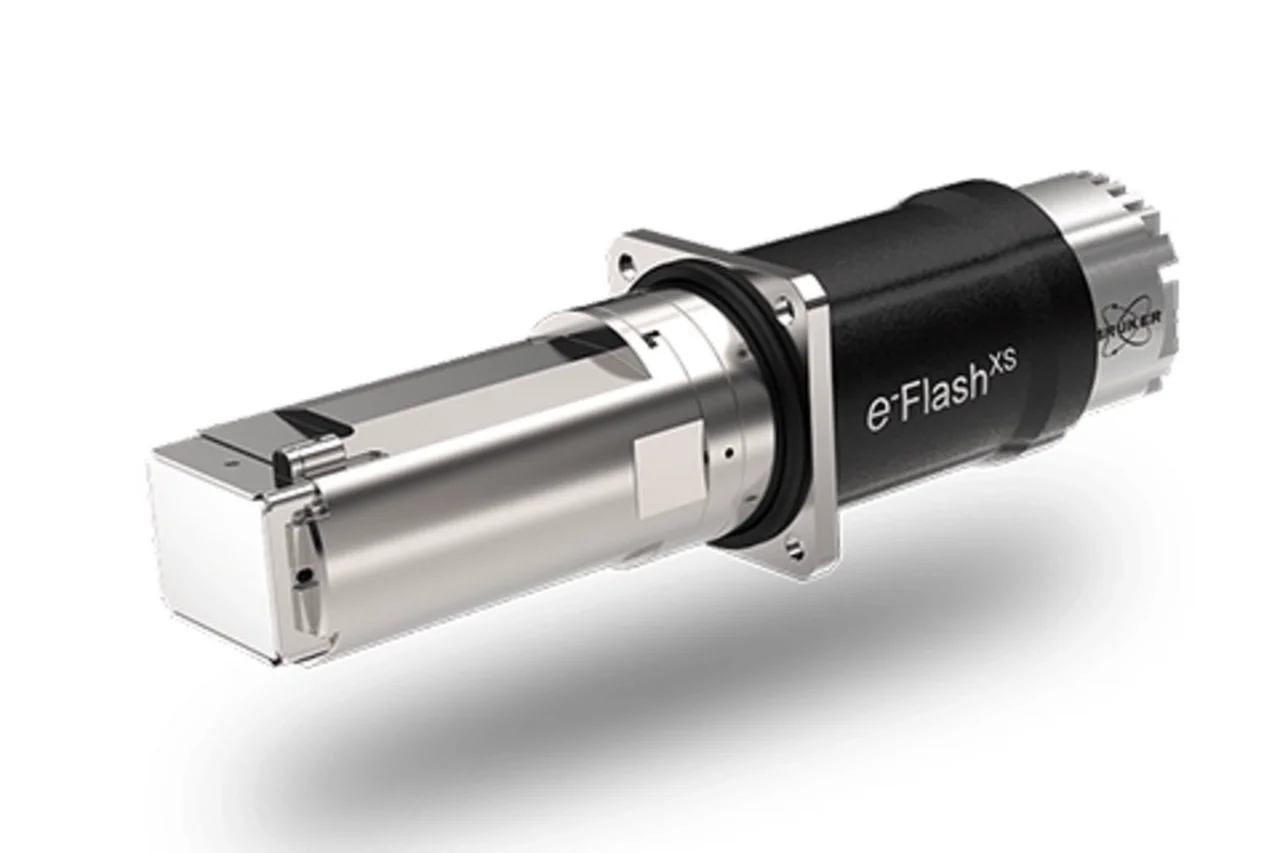

EBSD by Bruker
- Material investigations of crystallographic structures
- Analysis of grain orientations, phase distributions, and deformation states

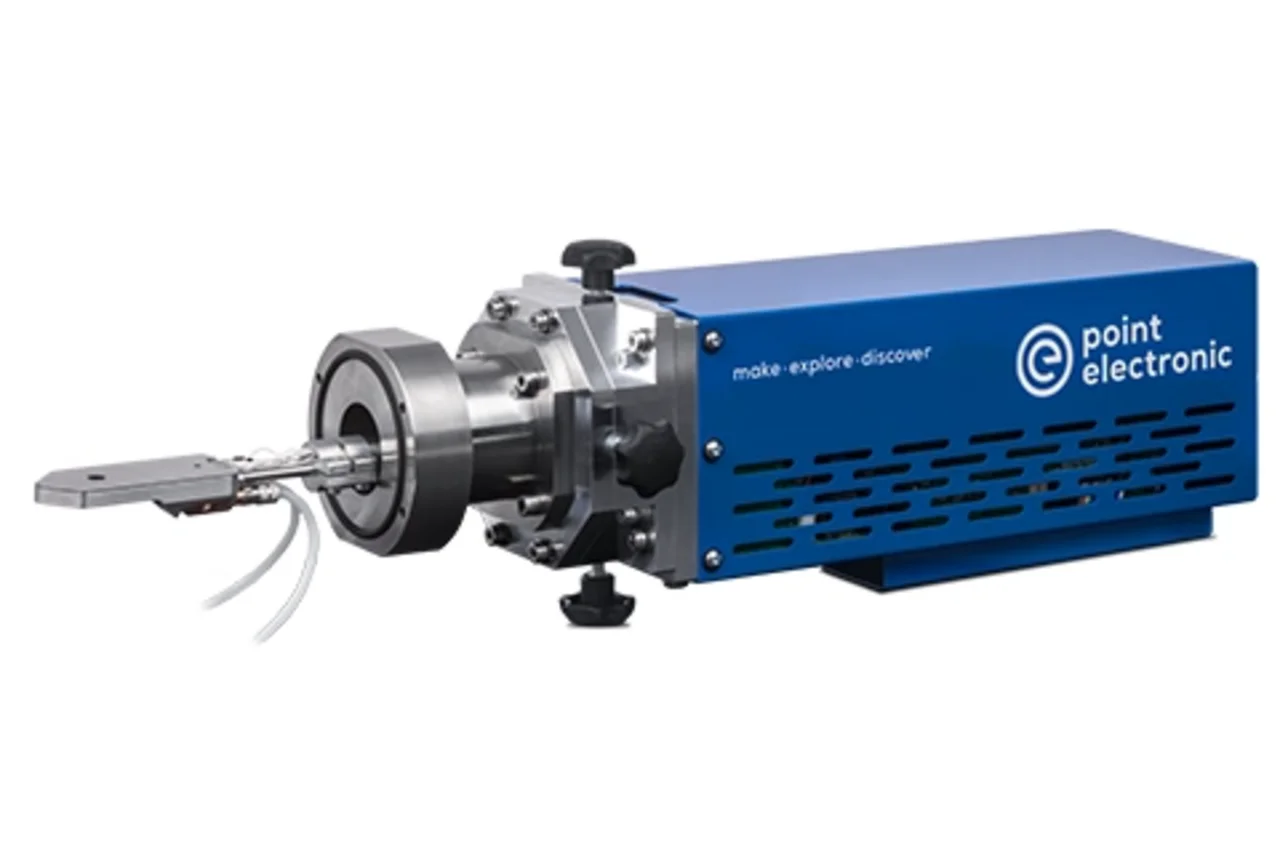

Premium BSE Detector
- Fast, efficient, and versatile detector for materials science
- Rapid imaging in sub-microseconds
- Operation at low kV

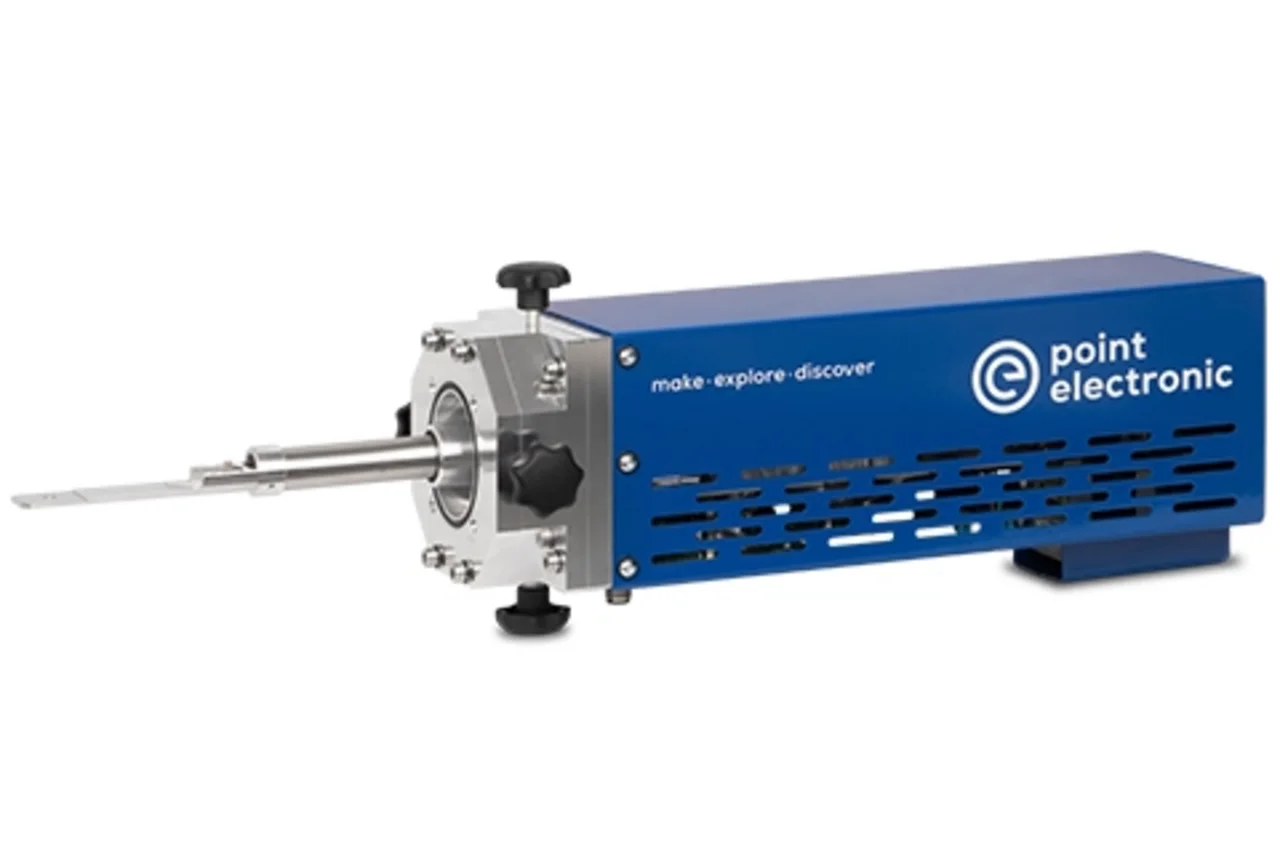

High-Temperature BSE Detector
- Unique light-insensitive detector for in-situ/in-operando microscopy
- High efficiency in the low kV range
- With water cooling

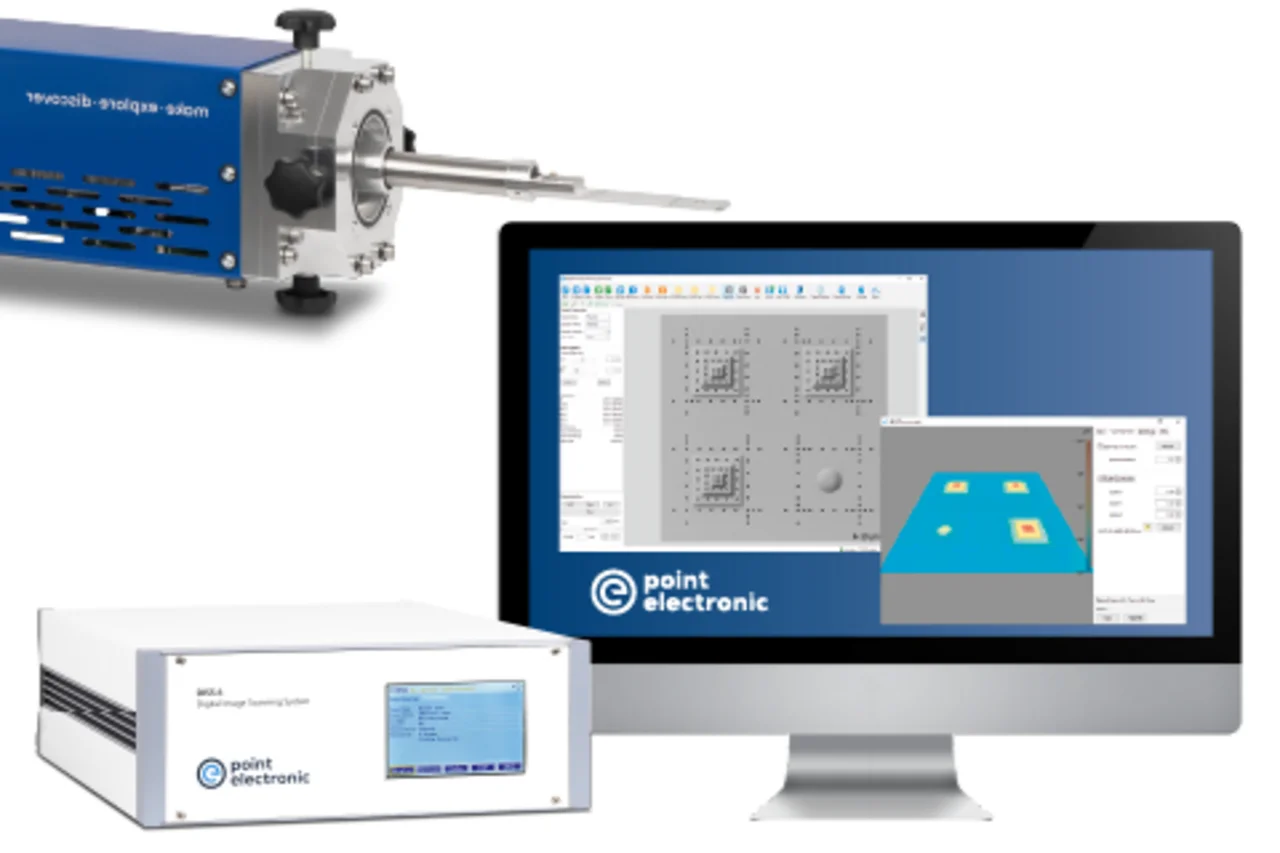

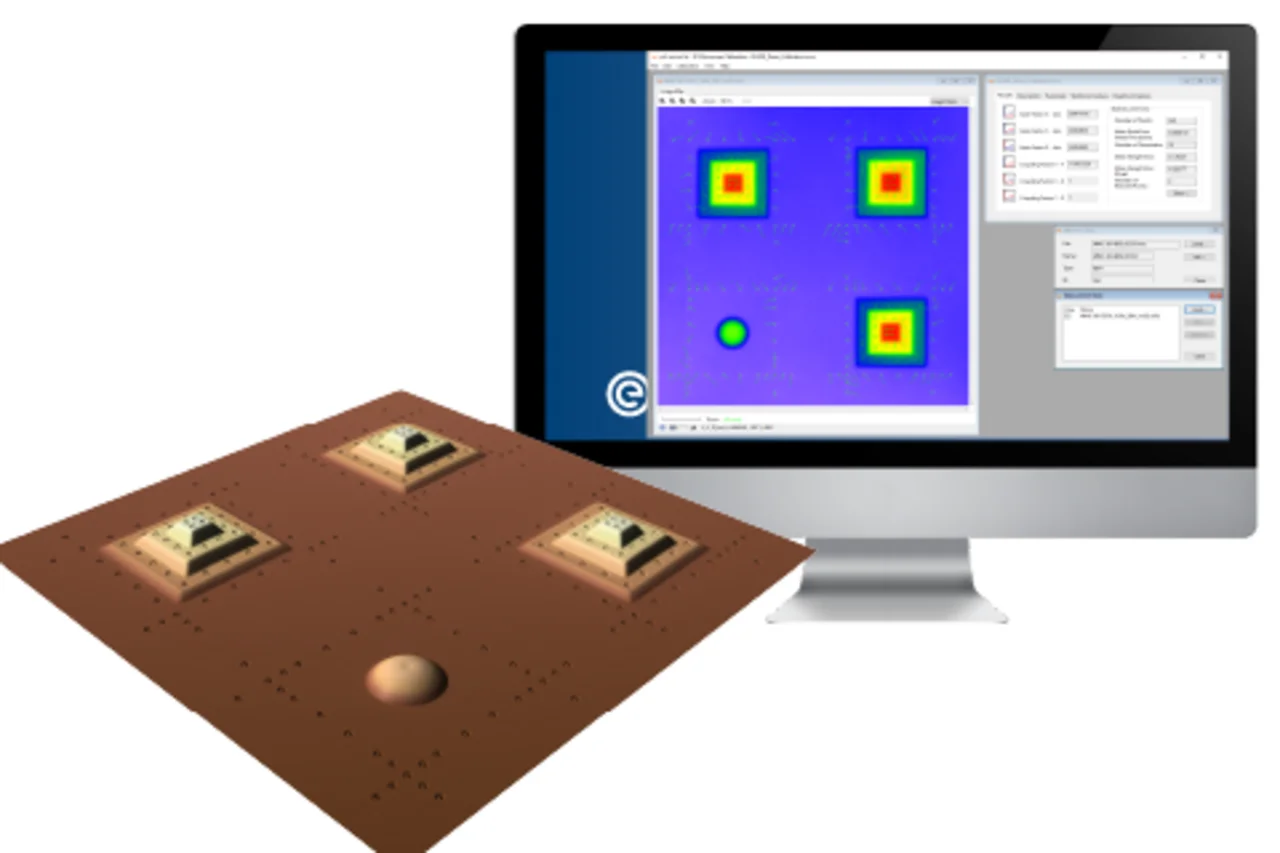

3D Topography Bundle
- The only solution for quantitative and calibrated real-time surface height measurement
- Real-time 3D visualization
- Manufacturer-independent
3D Calibration Bundle
- 3D calibration of your sample
- Determination of the accuracy of your 3D measurements
- Quantitative evaluation of surface and height features
Electrical Analysis in the SEM
- Visualization of electronic defects and properties (EBIC, RCI, EBIRCH)
- Multichannel imaging, live color mixing, quantitative signal analysis, in-situ pre-amplification, integrated lock-in EA
